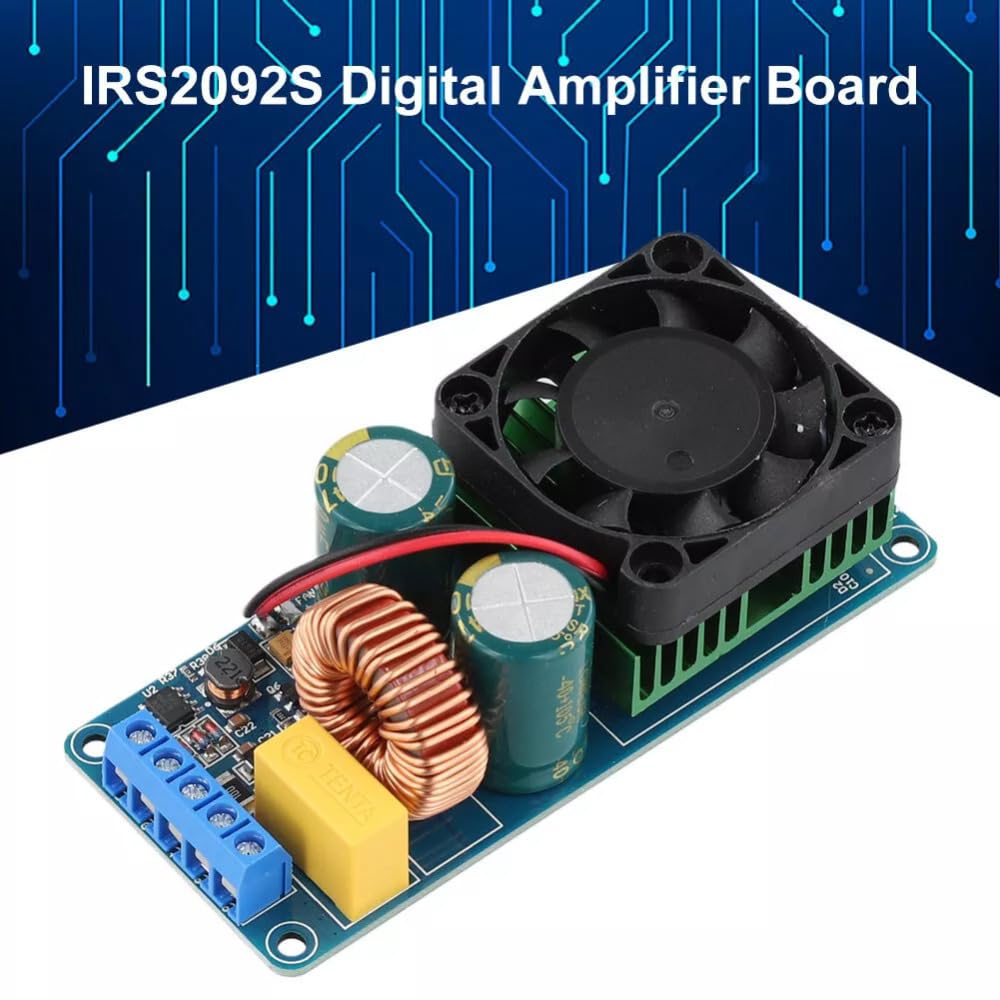

2X IRS2092S 500W for Mono Channel Digital Amplifier Class D HiFi Power Amp Boards
4.3 (140 items)
Limited Time SaleUS$14.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218130278 | Release Date | 2026/05/03 | List Price | US$10.00 | Model Number | 218130278 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
2Pcs IRS2092S 500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board LM3886Specifications:1. Power supply: dual DC power supply ± 58-± 70V2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)3. Efficiency:> = 90%4. SNR: 90dB5. The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280W (± 65 power 8 ohm speaker, distortion <0.1%)6. Frequency range: 20Hz-20KHz7. Speaker: 4-8ohm8. Voltage Magnification: 36 times9. Input sensitivity 1.5V (RMS)10. Output short circuit protection: Yes11. That output DC bias protection speaker protection: Yes12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!13. Product Size: approx. 100*50*30mm/3.93*1.96*1.18''14. Net weight: approx.100g15. Qty:2PcsPackage included: 2Pcs Digital Amplifier ModulesNote:Please allow 1-3mm differs due to manual measurement.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
- Voltage Magnification:36 times
- Package included: 2Pcs Digital Amplifier Modules
- Frequency range:20Hz-20KHz
- Size:approx. 100*50*30mm/3.93*1.96*1.18''
| UPC | 094759664361 |
|---|---|
| Model | IRS2092S |
| Brand Name | UCCKEYI |
| Part Number | IRS2092S |
| Manufacturer | UCCKEYI |
| Output Power | 500 Watts |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Maximum Supply Voltage | 70 Volts (DC) |
| Minimum Supply Voltage | 58 Volts (DC) |
